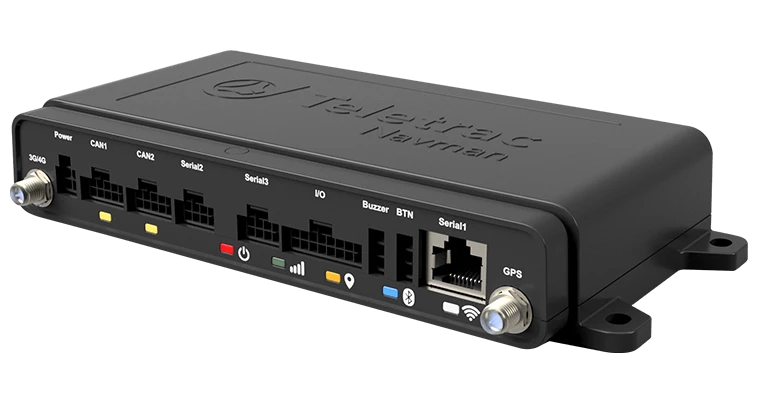

VT202
Powering Vehicle Insights and Enabling Driver Performance
The VT202 delivers advanced telematics capabilities, enabling fleet operators to make real-time decisions that streamline operations, improve safety and meet sustainability goals. The device works in both light and heavy-duty vehicles and can scale to meet the needs of small local fleets and large national enterprises.
When paired with TN360, the VT202 powers advanced fleet management and workflow solutions, providing the visibility fleet operators need to simplify the way they work and ensure their operations are safe, efficient and compliant. With the combination of real-time visibility, in-depth reports and performance dashboards, you’ll have everything you need to keep your fleet running smoothly.
The VT202 is also TCA Level 2 Type-Approved for use in regulatory applications in Australia for improved access to the road network or increased payload.
Powering Insights
The VT202 captures key data from your drivers and vehicles that power data insights in the TN360 application.
- Second-by-second high-definition vehicle tracking
- Capture driver safety events and share data with drivers through a scorecard application
- Allows for general purpose input / output (GPIO) and CANBus support
- Access in depth reporting and performance dashboards covering safety, productivity and utilisation
- Build custom dashboards that align with your KPI’s
- Question-based insights
Enhanced Connectivity
The data captured by the VT202 powers driver applications that keep you connected with your workforce on the road.
- TCA Level 2 Type-Approved for use in regulatory programs (RIM, TMA, Smart OBM)
- Stay connected with your workforce through a flexible suite of applications that can run on your devices or on our fully managed MT201/MT501 devices
- Applications for vehicle inspections, job management, document management, route compliance, communication and trip management
Enabling Integration
The VT202 is a highly flexible device enabling you to develop a solution that meets the needs of your business.
- Created to evolve with your changing needs and grow with your business
- Capability for wired and wireless connectivity (BLE) to external sensors (temperature, doors, presence)
- Ability to integrate with third party solutions to empower improved business systems
Technical Specifications
See why this device is right for you
Certifications:
North America: FC, IC
United Kingdom: CE, REACH, RoHS
European Union:CE, REACH, RoHS
Australia: RCM, TCA Level 2 Type Approved
New Zealand: RCM
Environmental: RoHS, SAE J1455-2006
Ratings: IP44
Network Approvals: AT&T, Telstra
Technical Approvals: PTCRB
Input / Output: 5 digital inputs, 5 digital outputs
Serial Ports: 3 serial ports including dedicated low-profile external button port
Connectivity: Internal 4G LTE Cat M1 modem
GNSS: GLONASS / GALILEO / BEIDOU / GPS
GNSS Antenna: External only
Bluetooth: BLE v5.2, up to 70m
Wireless: WIFI capable, up to 400m
Vehicle bus: 2 CAN FD, J1939/J1708
RS232: 3
Buzzer: Internal, with optional external buzzer/led combo
Size: Height 184mm, Width 82mm, Depth 31mm
Weight: -360g / 12.7oz
Installation: professional 3-wire install through Teletrac Navman's installation team. Self-install options available.
Battery: 1900 mAh LIPo
Supply Voltage: 6-90 V DC
Auxiliary Power Output: 12V @ 1.5A
Battery Operating Temp: -10 to 85 °C / 14 to 165 °F
External Power Operating Temp: -40 to 85 °C / -40 to 185 °F
Current Consumption (Sleep): <3mA @ 12VDC
Current Consumption (Nominal): 80mA @ 12VDC
Accelerometer & Gyroscope: Yes, 6-Axis
Record Storage: 16mb flash storage
Memory: 640KB + 16 MB External RAM
LED's: 7 incl. dedicated CAN activity LED
Tracking: Second by second data
Firmware Updates: Over-the-air (OTA)
Mobile Application: TN360 Apps
Supported Platform: TN360
